After I was using a Archos-70IT tablet with some restrictions for my use cases, I was looking for a new tablet with bigger size - but smaller than 10". Since the Samsung GalaxyTab 8.9" is'nt a phone and does'nt support microSD cards, I was ordering a Samsung GalaxyTab 7.7" .
Here are some tools & adapters (plus sources) and technical information about the 30 pin connector...

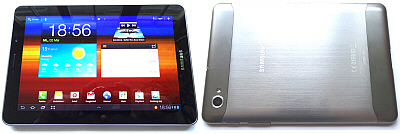

	GalaxyTab 7.7 WiFi + 3G (from HaiFun Austria)

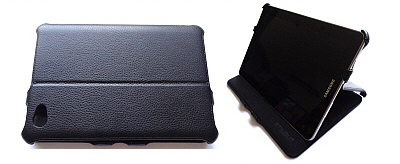

	StilGut Ultra SlimCase
	Samsung Multimedia Dock (with HDMI & audio line-out)

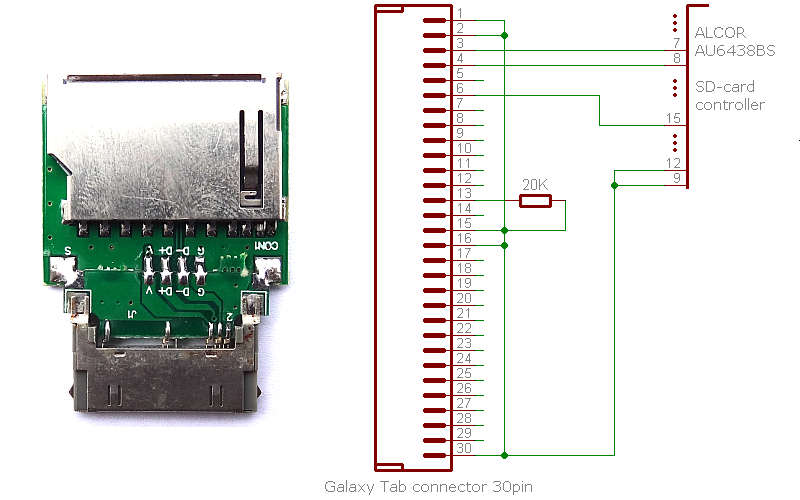

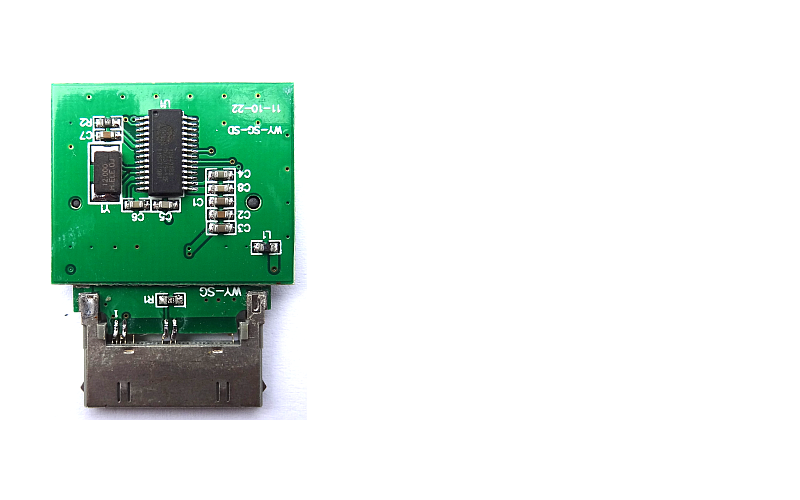

	Samsung SD-card adapter & USB OTG host adapter (2. side of SD-card adapter)

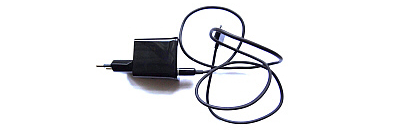

	Samsung (USB) travel adapter

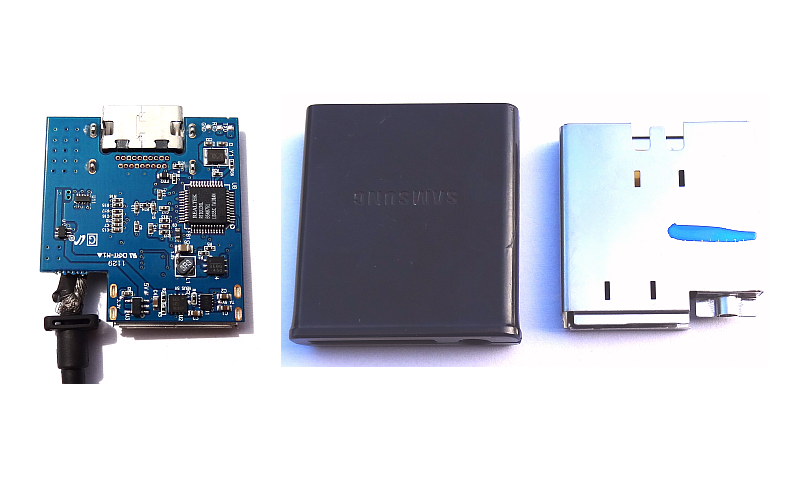

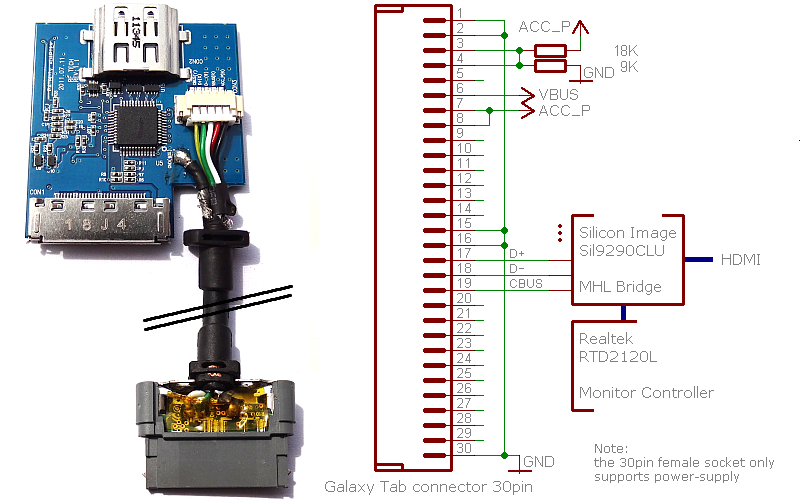

	Samsung HDMI adapter (2. side plus housing)

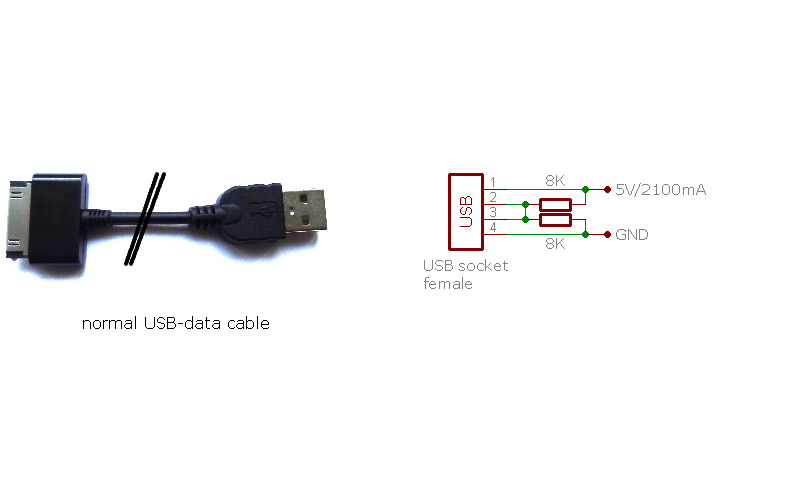

	USB device and charger adapter short (from yourcharger ebay)

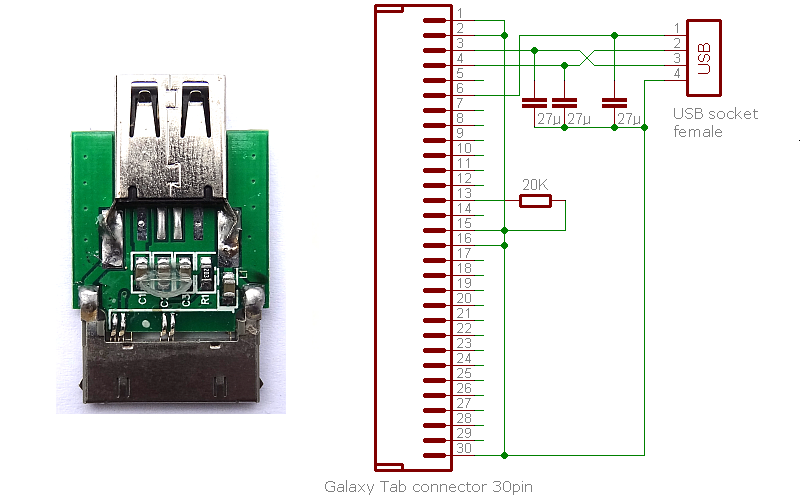

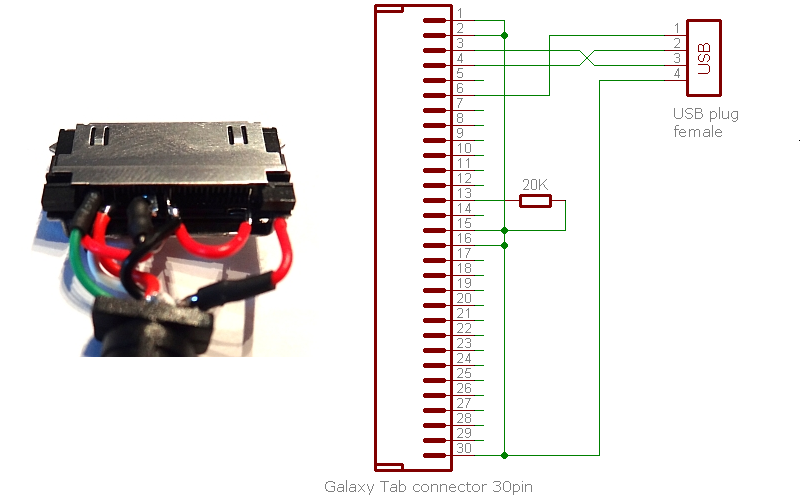

	USB OTG host adapter short (from yourcharger ebay)
	Audio line-out adapter short (from yourcharger ebay)

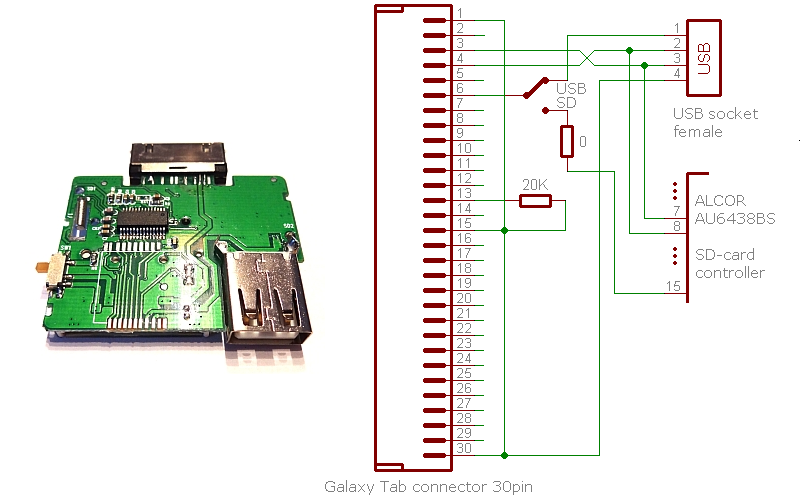

	Hebron SD-card & USB OTG host adapter

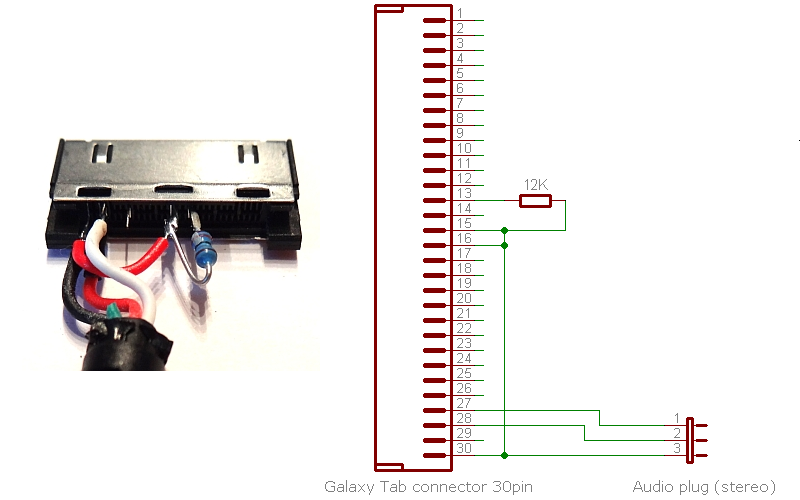

	Audio line-out adapter 3.5mm (from yourcharger ebay)
	Audio line-out adapter cinch (from yourcharger ebay)

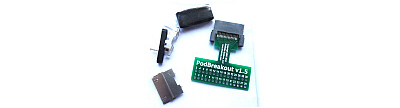

	30 pin Samsung TabBreakout board (from www.kineteka.com)
	30 pin Samsung Galaxy Tab Connector (from www.kineteka.com)
	Belkin car charger for Samsung Galaxy Tab (2100 mA)

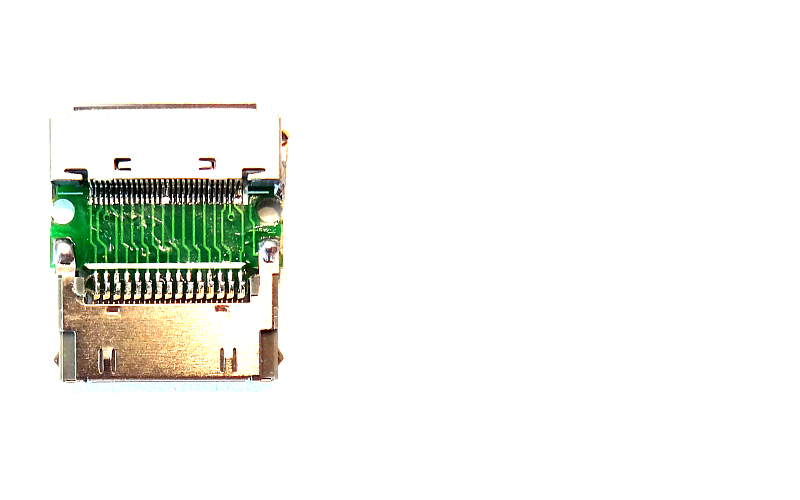

	30 pin Samsung Galaxy Tab Dock Male to Female Adapter (from www.usbfever.com)

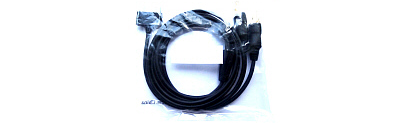

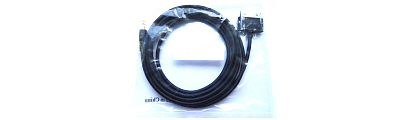

	Delock cable for IPhone / IPod > USB 2.0 + Audio 3.5mm 1 meter (adapted with new 30 pin Samsung Galaxy Tab Connector)

informations about the 30 pin connector

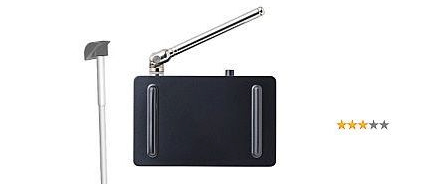

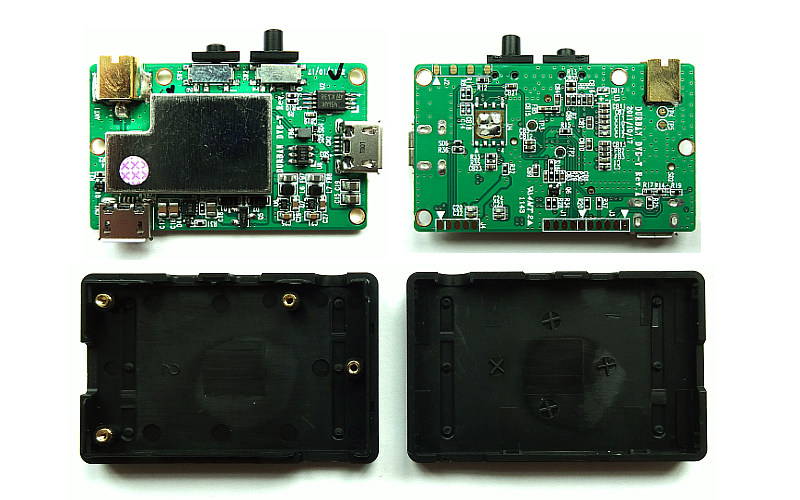

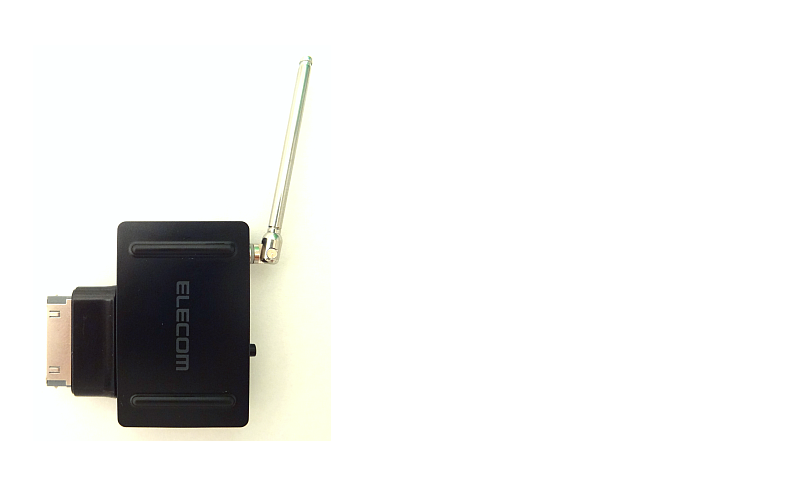

	Elecom 12123 + simple to connect + mostly stable app - low receive quality with org antenna adapted to Galaxy Tab connector

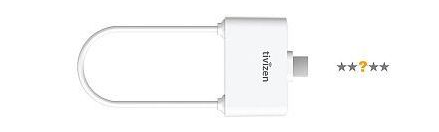

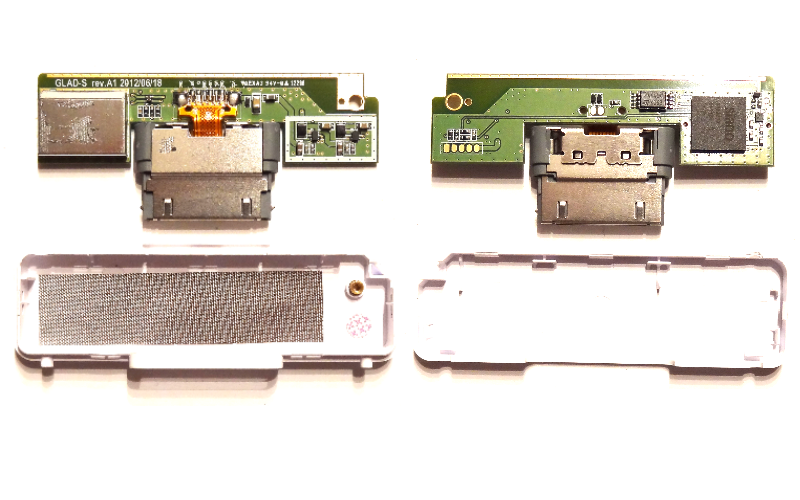

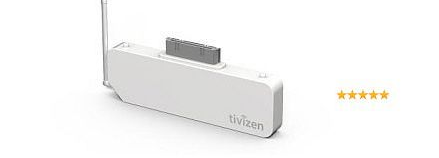

	Tivizen pico Galaxy + simple to connect + stable app + really good receive quality with org antenna + good internal EM shielding - only without tablet case usable (like my StilGut Ultra SlimCase)
	Tivizen pico Android

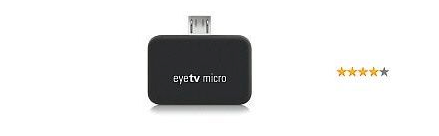

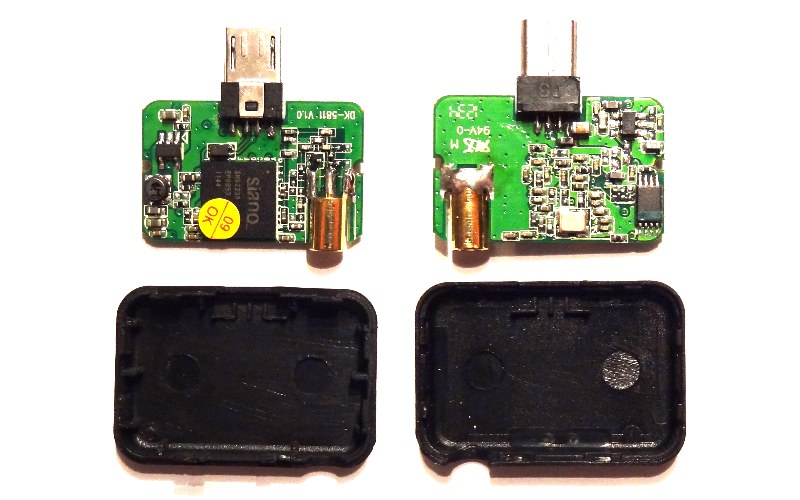

	EyeTV micro Android + simple to connect + mostly stable app + compact design - low receive quality with org antenna

... additional links to forum sides and technical information ...
