pC/... overview



This following modules are all programmed by me. But I can't make all modules available or to download on reason of overlaps with my job.



moduldescription
pC/OSRTOS Kernel based on the µC/OS 1.00 of Jean J. Labrosse from the Embedded Systems Programming Magazine(1992)
( 8051-Keil / Am188ES / Rabbit3000 / Philips-XA / MSP430 / ATMega128 / AT91SAM7S-EK / AT91SAM7Sxx / LPC2148 / STR-H711 / STR-P711 / AT91SAM7-EX / AT91SAM7XCxx / LPC236x / LM3S811 / LM3S9B92 / STM32-H103 / MCBSTM32 / Microchip PIC32MX / Microchip PIC32MX Mini-32 / R32C111 / AVR32 / AT91SAM7SE-EK / AT91SAM7SExx / LPC1114 / LPC1343 / LPC1343 EA / LPC1769 / AT91SAM3SxA / STM32F072 / STM32F103 / STM32F407 / STM32F417 / STM32F746 / STM32F767 / STM32L4xx / nRF52832 / Microchip/Atmel SAMD21 / NUC123 / MKL25Z128 / MKL26Z64 (Teensy_LC SWD-debug) / MK20DX256 (Teensy_3.2 SWD-debug) / MK60DN512 / MK66FX1M (Teensy_3.6 SWD-debug) / XMC1100 / MPS2 ARMv8-M / SiFive RISC-V Hifive1 / SiFive RISC-V LoFive / Synopsys ARC-EM / Silicon Labs EFM32 / Microchip PIC32MZ Mini-32 / Renesas RX210 / Renesas RX62N / Renesas V850 / Renesas RL78 / Microchip/Atmel SAML10 & SAML11 / Microchip/Atmel SAMD51 / Nuvoton M2351 / TI TMS570LS04 / Giga Devices GD32F103 / Giga Devices GD32F303 / Giga Devices GD32F407 / Giga Devices GD32E230K / Artery AT32F403A / Microchip/Atmel SAMS70 / NXP/Freescale PPC MPC57xx / Ambiq Micro Apollo3 / Giga Devices GD32VF103C / GD32VF103C Longan Nano / NXP LPC55S69 / ST STM32L5xx / ST STM32G4xx / Microchip PIC32MM / Microchip PIC24F / ST STM32H750 / ST STM32H745 dual-core / NXP LPC4337 dual-core / Giga Devices GD32E50x / ST STM32G0xx / WCH CH32V103 / WCH CH32V20x / WCH CH32V30x / Synwit Tech SWM181 / .. )
pC/TFSTiniFileSystem (on parallel byte-access memory like EEPROM / RAM / FRAM / MRAM / ..
AT91SAM7SExx / STM32F407 / STM32F417 / .. )

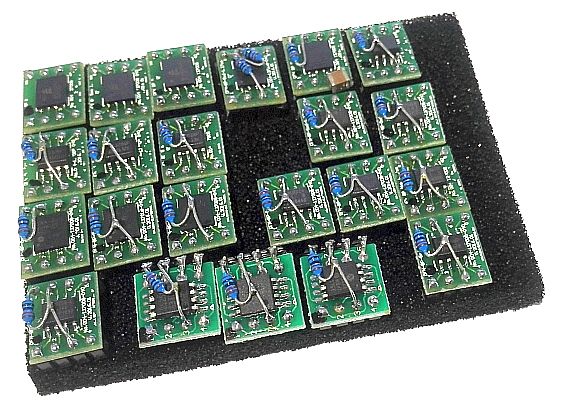

pC/SFSsmall SerialFileSystem (on serial byte-access memory like EEPROM / RAM / FRAM / MRAM / ReRAM / ..
like MR25H40 / FM25H20 / CY15B104Q / CY14B101Q2 / 25AA1024 / AT25M01 / M95M01 / CAT25M01 / ..
pC/FFSFlashFileSystem
on MMC/SD-cards (using pC/MMC) / NAND / ..
( MMC/SD-Karten / all pC/MMC boards / AT91SAM7SE-EK / AT91SAM7SExx / AT91SAM3SxA / STM32F407 / STM32F417 / .. )
pC/FATFAT16/FAT32-FileSystem with support of long names
on MMC/SD-cards (using pC/MMC) / NAND / ..
( MMC/SD-Karten / all pC/MMC boards / AT91SAM7SE-EK / AT91SAM7SExx / AT91SAM3SxA / STM32F407 / STM32F417 / .. )
pC/HTTPdHTTP-Server

supported methodes:
GET HEAD POST TRACE OPTIONS PUT DELETE
pC/FTPdFTP-Server

supported commands:
ABOR APPE CDUP CLNT CWD DELE EPRT EPSV HELP LIST LPRT LPSV MKD MODE NLST NOOP PASS PASV PORT PWD QUIT REIN RETR REST RMD RNFR RNTO SIZE STAT STOR STRU SYST TYPE USER XCUP XCWD XMKD XRMD XPWD
pC/COAPCoAP-Client/Server

supports all methods/codes and options incl. Block1 / Block2 via API & callbacks
pC/LWM2MLWM2M-Client

running on top of the pC/COAP as hockup using a file system for objects & resources, supporting all mandatory features
pC/MQTTMQTT-Publisher/Subscriber

supporting all packet-types and QoS-0..2 via API & callbacks
pC/CMUX3GPP/ETSI/GSM CMUX-router

for multiple AT-interfaces plus an additional included rSAP modul (SIM Access Server) supporting SIM & virtual-SIM access
pC/TCPIPTCP/IP-Stack
(SLIP / WinTAP / RTL8019AS / CS8900A / AT91SAM7XCxx / LPC236x / STM32F417 / all pC/USB boards / .. )

contains:
IPv4, TCP, UDP, ICMP(Ping), small WINS-server, small DHCP-server, small DHCP-client, small DNS-client
pC/PPPPPP-Stack (client - uses LCP & IPCP only)
pC/MEMsmall memory-mananger
pC/LZFGDecompressor for LZFG-compressed data
pC/USBUSB-DeviceStack
( PDIUSBD11 / PDIUSBD12 / USBN9604 / AT91SAM7S-EK / AT91SAM7Sxx / LPC2148 / STR711 / STR-P711 / AT91SAM7-EX / AT91SAM7XCxx / LPC236x / STM32-H103 / MCBSTM32 / AT91SAM7SE-EK / AT91SAM7SExx / SAM3SxA / STM32F407 / STM32F417 / SAMD21 / .. )

created USB-classes:
RNDIS / CDC-Ethernet(ECM) / EthernetEmulationModel(EEM) / RBC/SCSI/ATAPI-MassStorage / HID / CCID/ICCD-bulk/ICCD-controlB / transparent / ..
with support of composites and alternate configs
pC/MMCMMC-Stack Host/Device
( ATMega128 / AT91SAM7Sxx / LPC2148 / STR711 / AT91SAM7-EX / AT91SAM7XCxx / LPC236x / STM32-H103 / MCBSTM32 / AT91SAM7SExx / SAM3SxA / STM32F407 / STM32F417 / SAMD21 / .. )
pC/X25X25-Router (between 2xLAPB / LAPD / VT100 / RS485)
pC/LAPBHDLC-Layer for X25-lines ( Z85230 )
pC/LAPDHDLC-Layer for ISDN D-channel ( PSB2115 )
pC/VT100VT100 Console (RS232 / X25)
pC/XMDMX-Modem (X-Modem / 1k X-Modem / WX-Modem / 1k WX-Modem)
pC/FLSHFlash-updater for firmware update (AMD-Flashes)
pC/PLDPLD-updater for isPLDs from Lattice
pC/LCDGUI for LCD-Controller ( SED1330 )




Some of this modules are also ported for the NUCLEUS PLUS kernel.


In order to be able to test the individual I/O-hardware modules at the possible processor boards, I drafted an universal interface. All usual I/O-lines partly make available these as High and Low-aktiv.

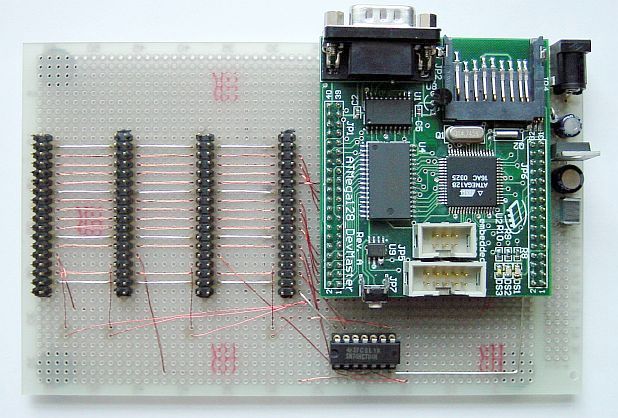

ATMega128 Adapter-Board

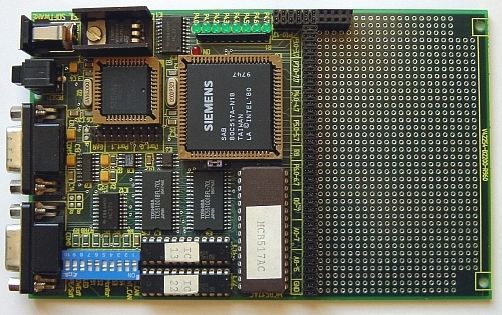

MCB517AC Adapter-Board


Rabbit3400 Adapter-Board



X

80C517A


X

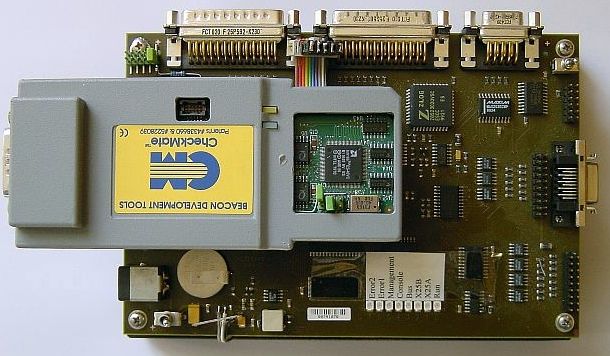

Am188ES


X

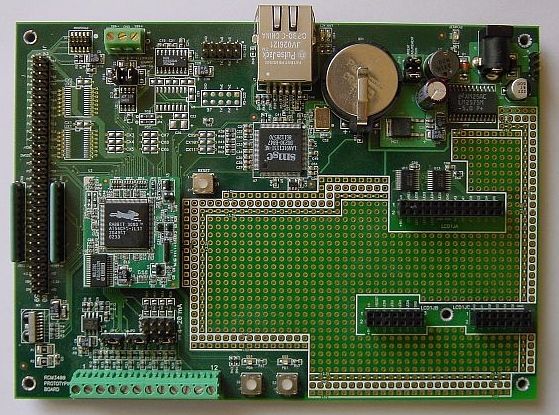

Rabbit3000


X

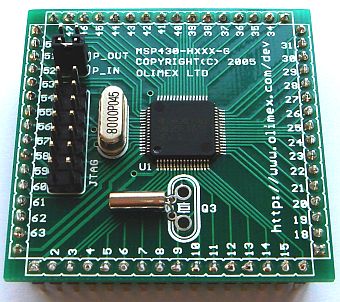

MSP430


X

ATMega128


X

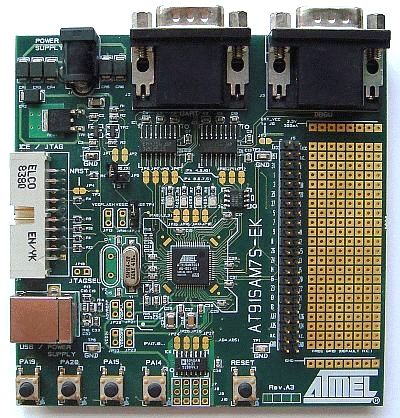

AT91SAM7S-EK


X

SAM7Sxx_DevMaster


X

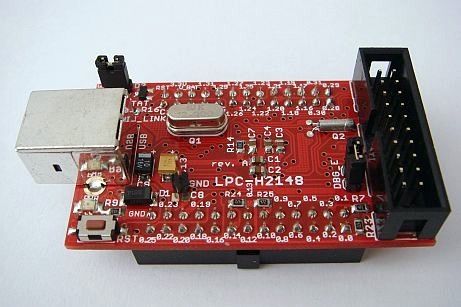

LPC-H2148


X

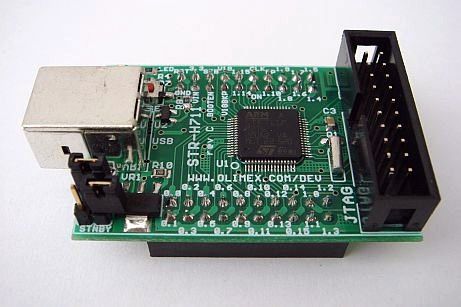

STR-H711


X

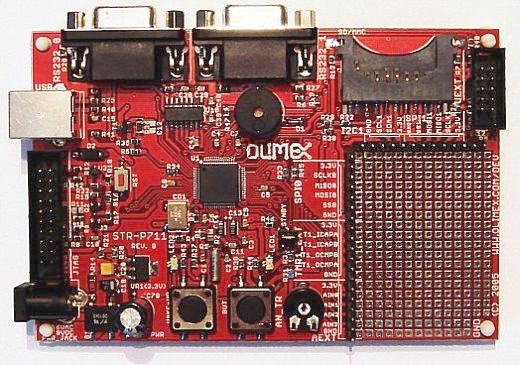

STR-P711


X

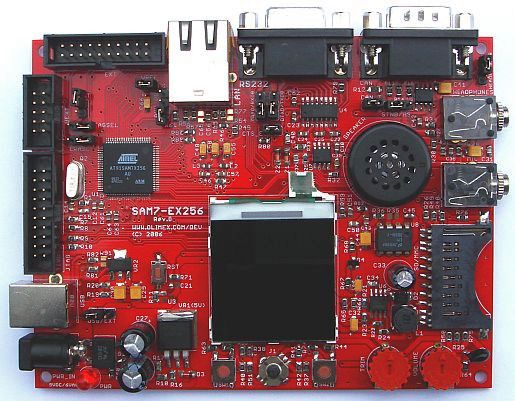

AT91SAM7-EX


X

SAM7XCxx_DevMaster


X

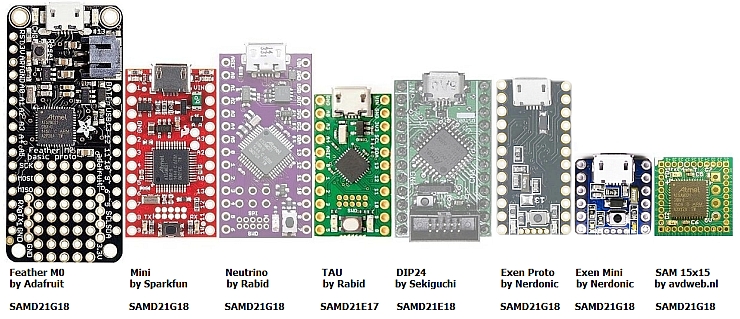

SAMD21 group


X

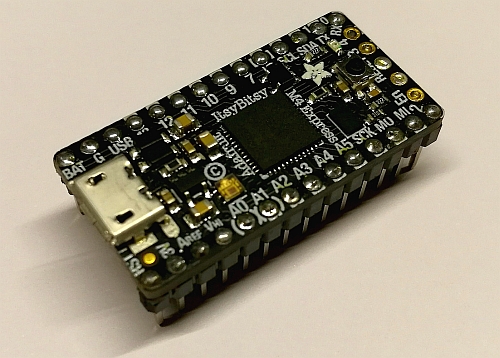

SAMD51 Express M4


X

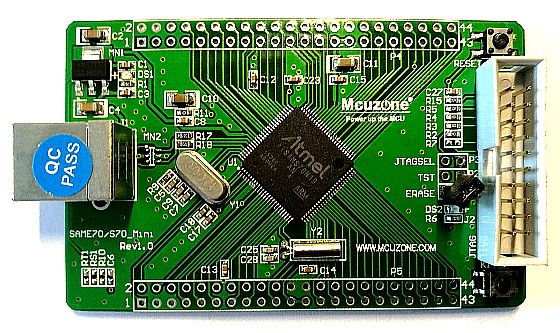

SAMS70


X

SAML10 & SAML11


X

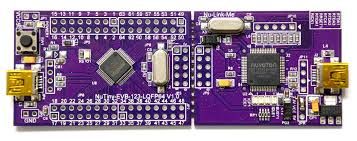

Nuvoton NUC123


X

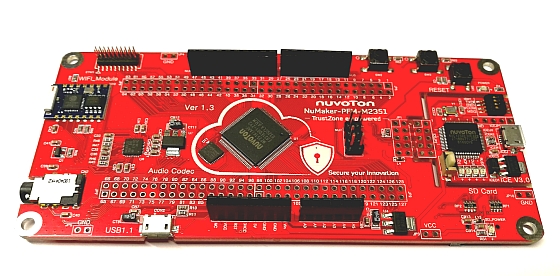

Nuvoton M2351


X

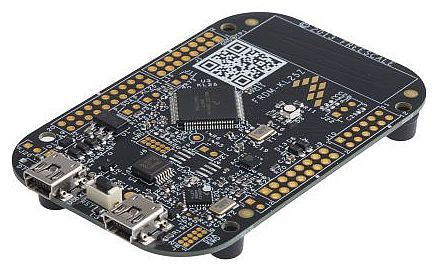

Freescale MKL25Z128


X

Freescale MKL26Z64


X

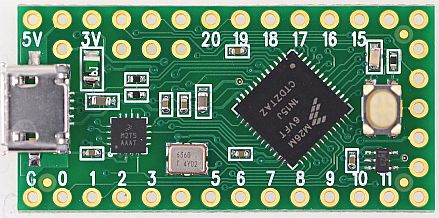

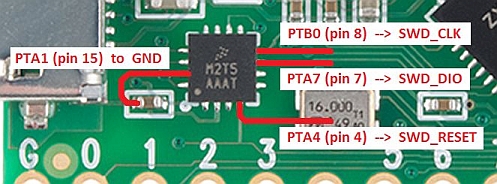

Teensy LC - bare metal adoption


X

Freescale MK20DX256


X

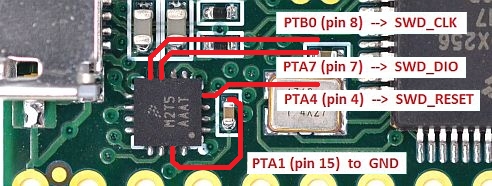

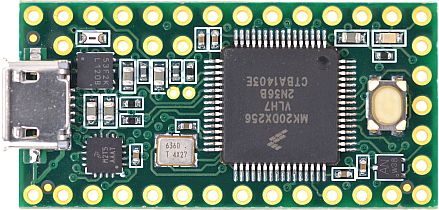

Teensy 3.2 - bare metal adoption


X

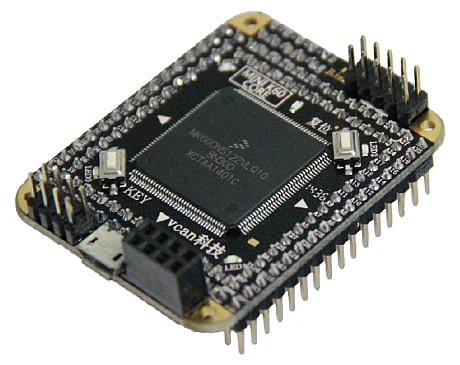

Freescale MK60DN512


X

Freescale MK66FX1M


X

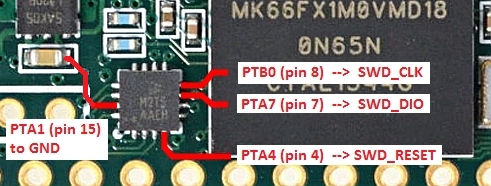

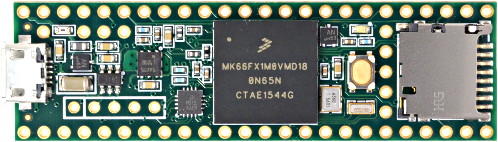

Teensy 3.6 - bare metal adoption


X

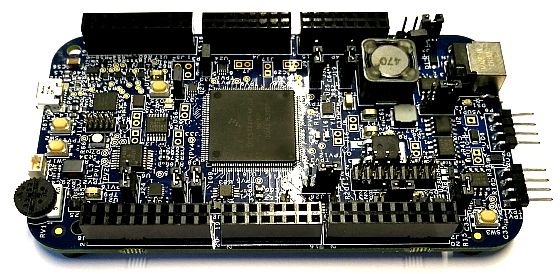

Freescale PPC MPC5744P


X

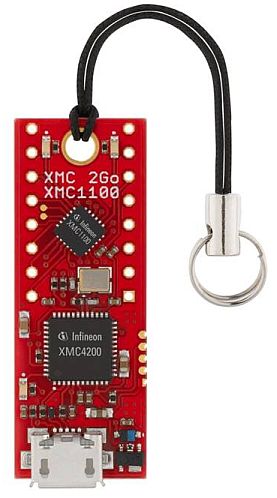

Infineon XMC1100


X

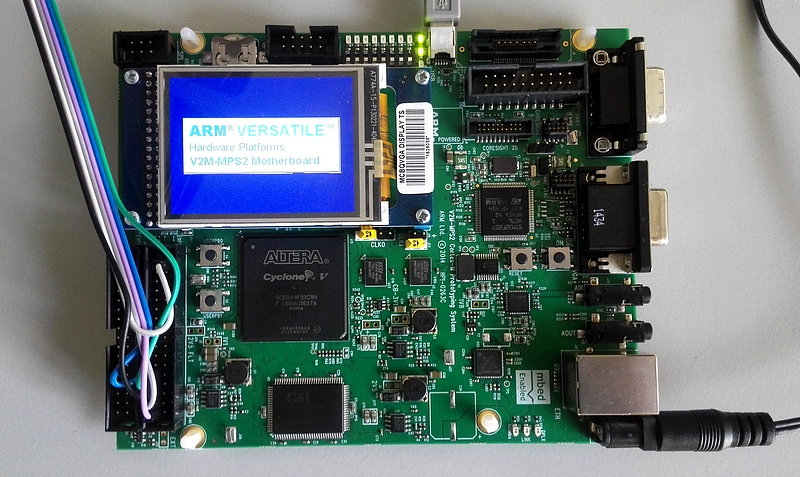

MPS2 FPGA ARMv8-M


X

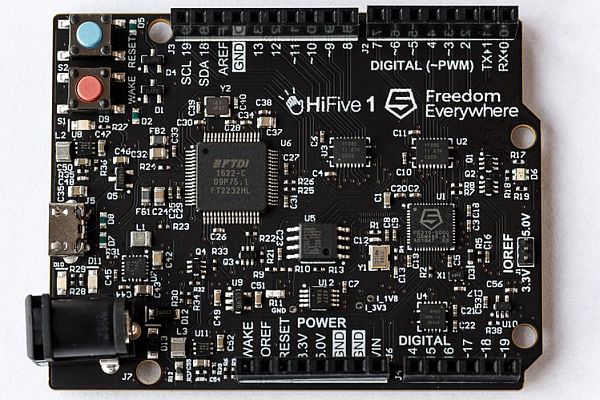

RISC-V FE310 HiFive1


X

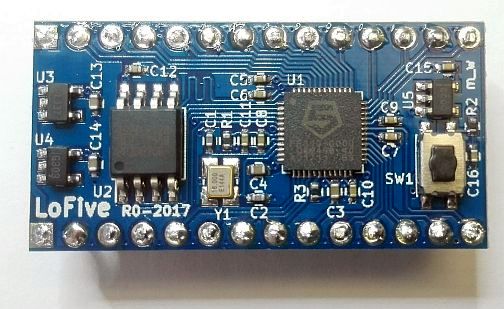

RISC-V FE310 LoFive


X

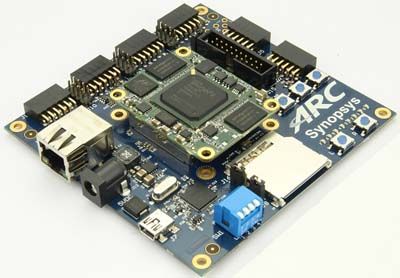

Synopsys ARC-EM Starter Kit


X

LPC236x_DevMaster


X

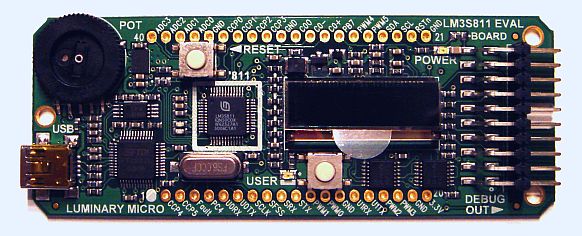

LM3S811


X

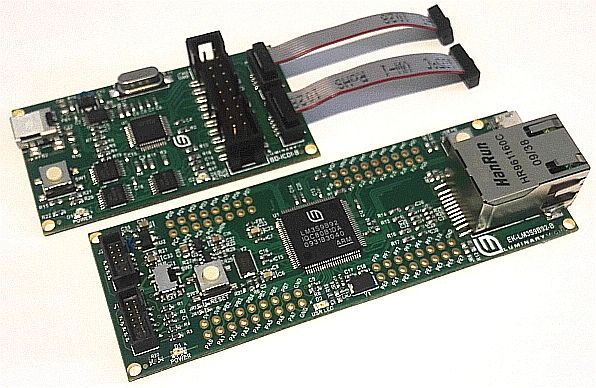

LM3S9B92


X

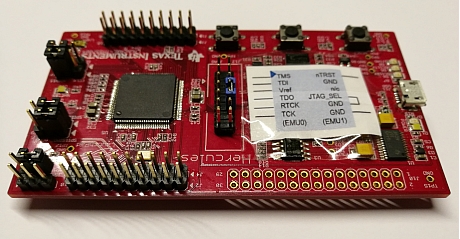

TI TMS570LS04


X

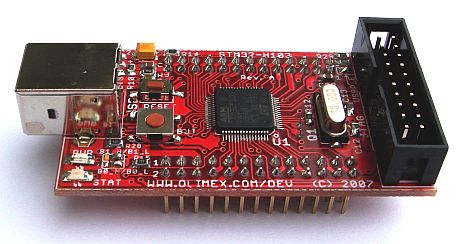

STM32-H103


X

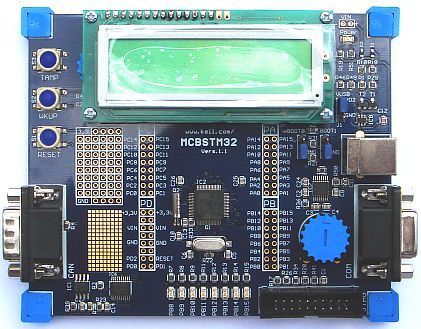

MCBSTM32


X

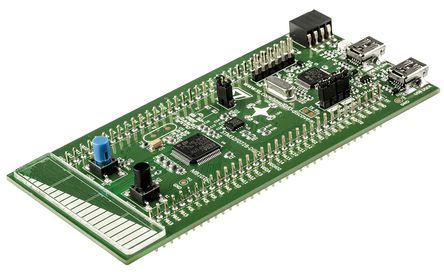

STM32F072B-DISCO


X

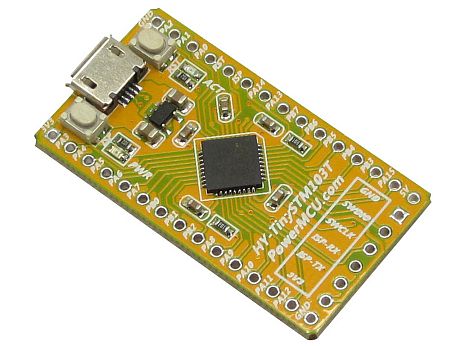

HY-TinySTM103T


X

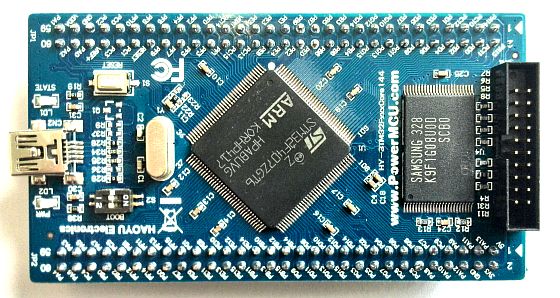

HY-STM32F4xxCore144


X

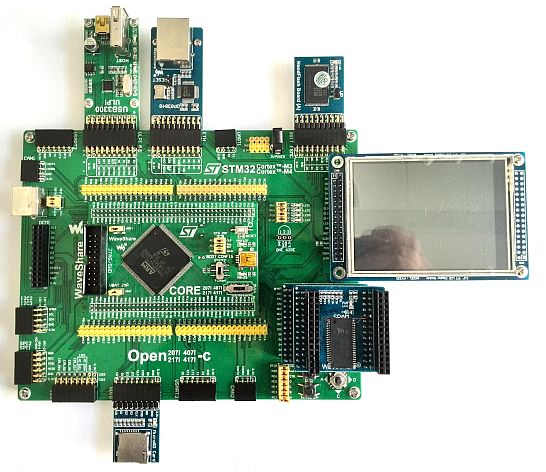

Open417I-C


X

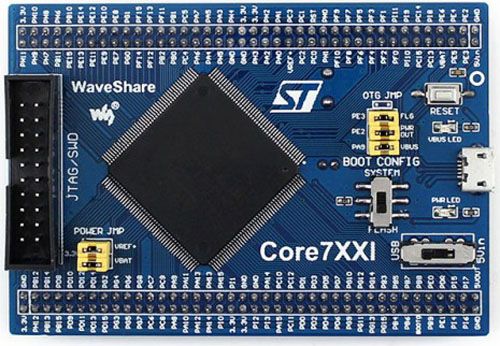

Core7xxI


X

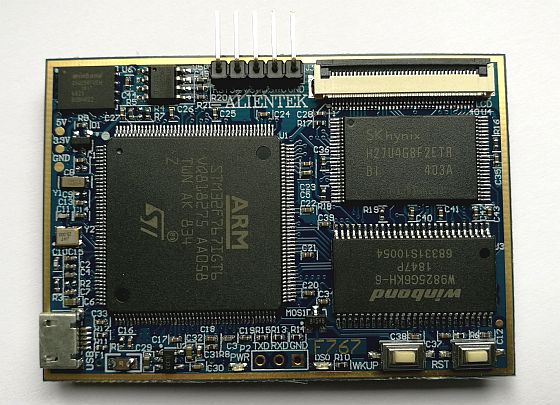

Alientek Core767I


X

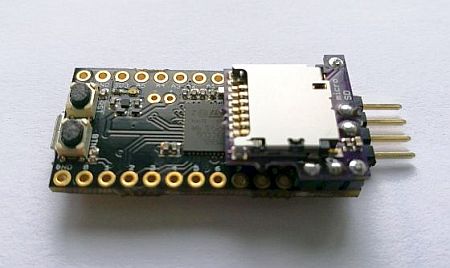

Butterfly STM32L433CCU6


X

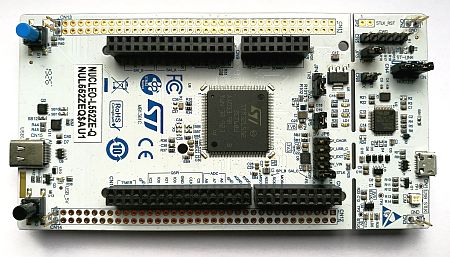

STM32L522


X

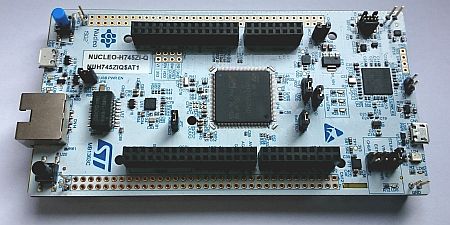

STM32H745 dual-core


X

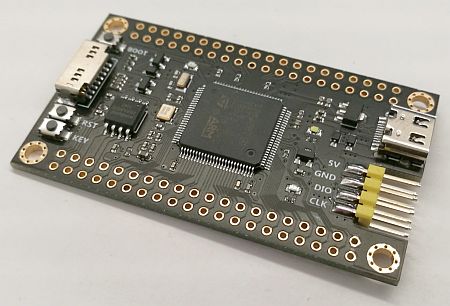

STM32H750


X

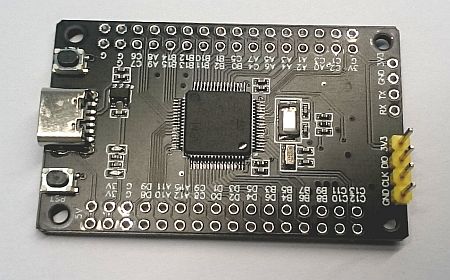

STM32G0xx


X

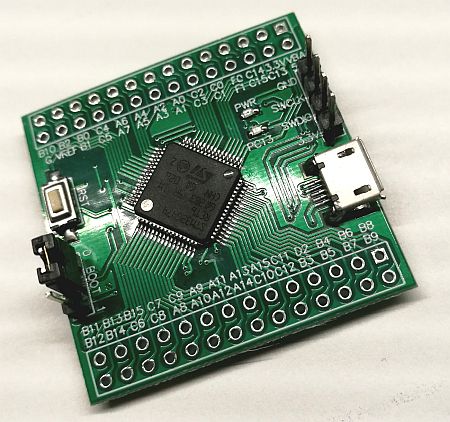

STM32G4xx


X

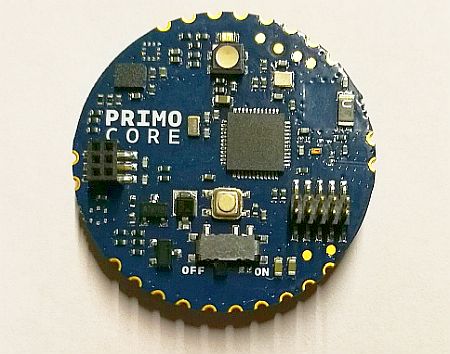

Primo Core nRF52832


X

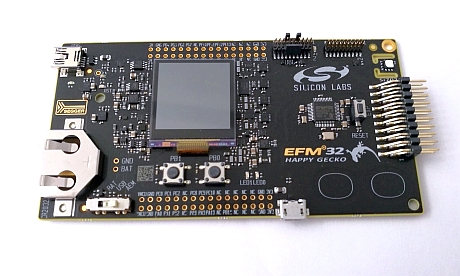

Silicon Labs EFM32


X

GD32F103C8


X

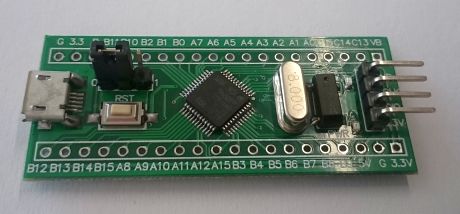

GD32F303


X

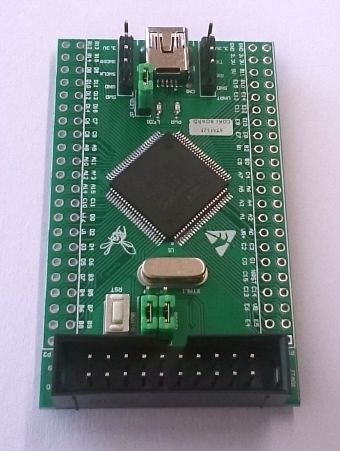

GD32F407


X

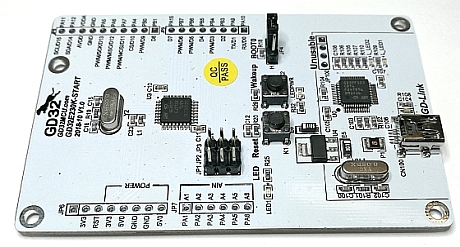

GigaDevice GD32E230K


X

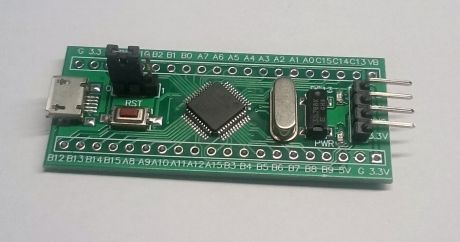

GigaDevice GD32E50x


X

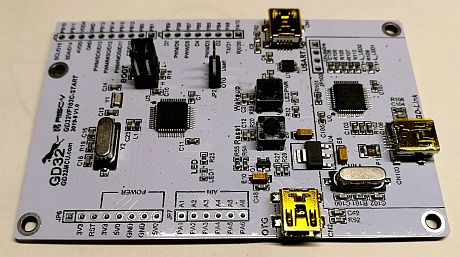

GigaDevice GD32VF103C


X

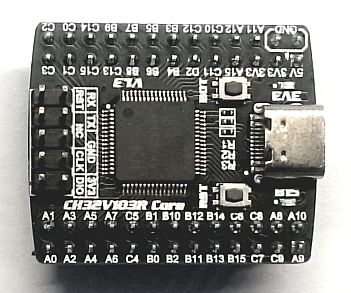

WCH CH32V103


X

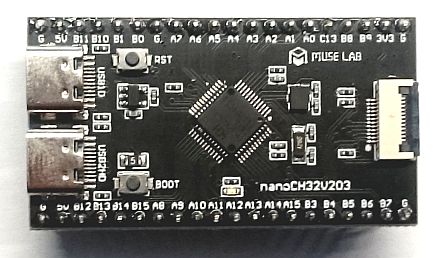

WCH CH32V20x


X

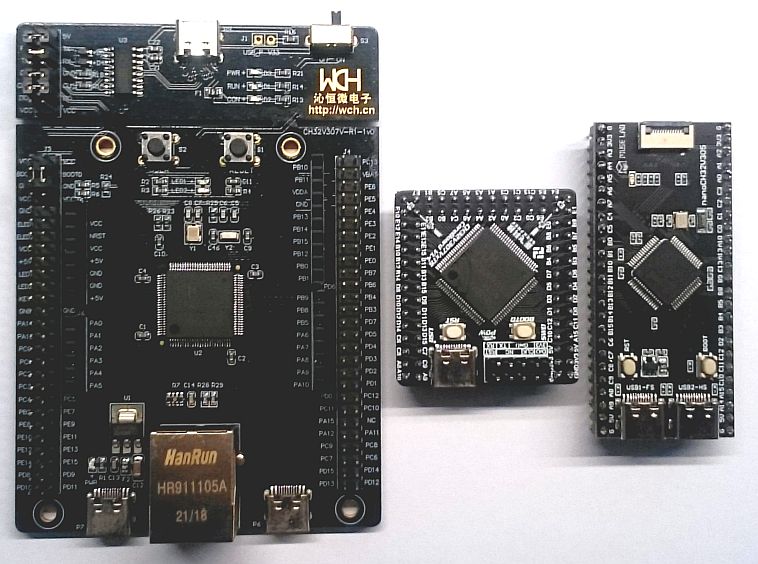

WCH CH32V30x


X

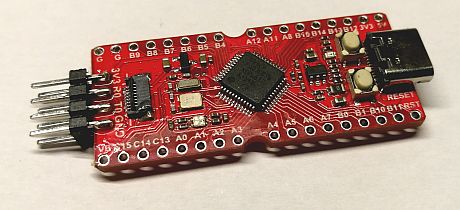

GD32VF103C Longan


X

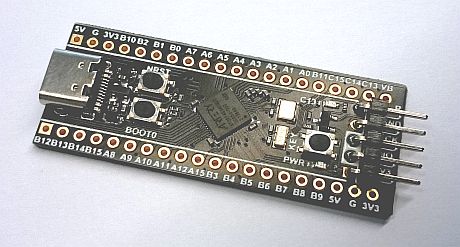

AT32F403A


X

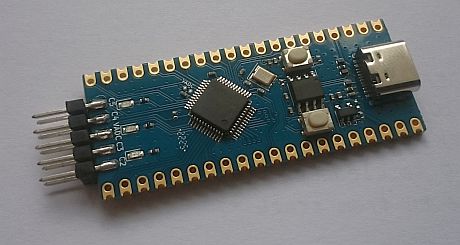

Synwit Tech SWM181


X

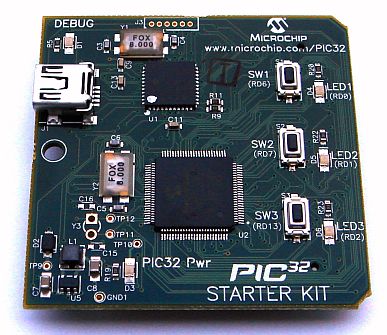

Microchip PIC32MX


X

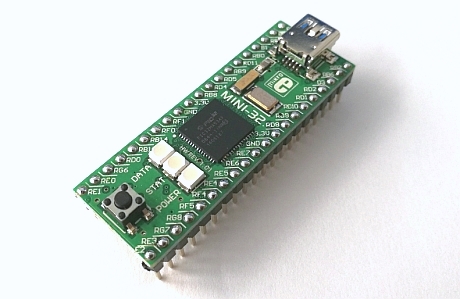

Microchip PIC32MX Mini-32


X

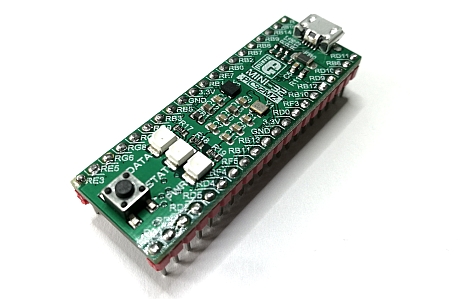

Microchip PIC32MZ Mini-32


X

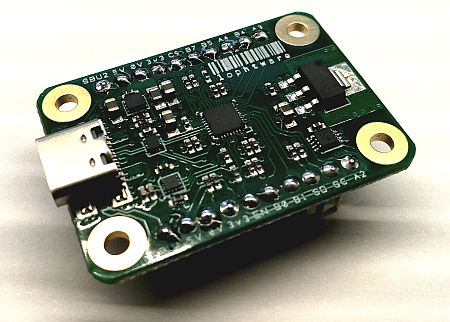

Microchip PIC32MM


X

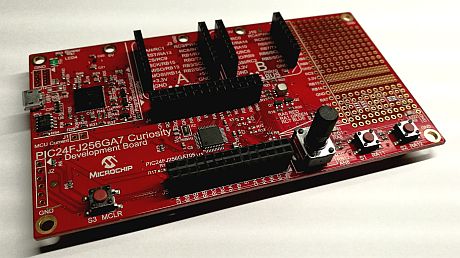

Microchip PIC24F


X

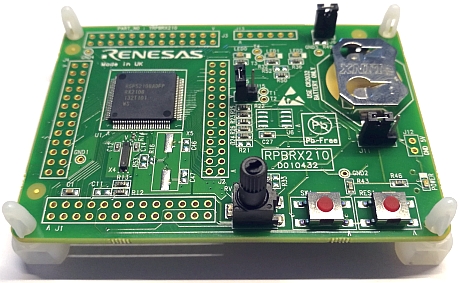

Renesas RX210


X

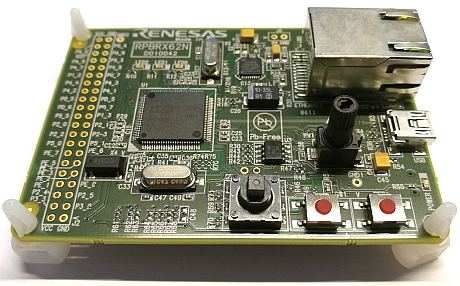

Renesas RX62N


X

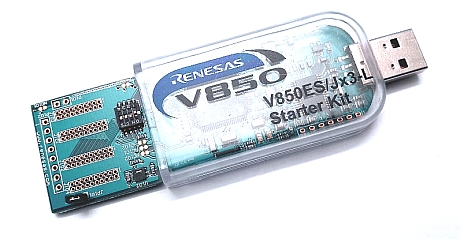

Renesas V850


X

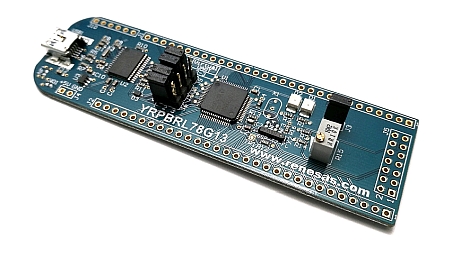

Renesas RL78


X

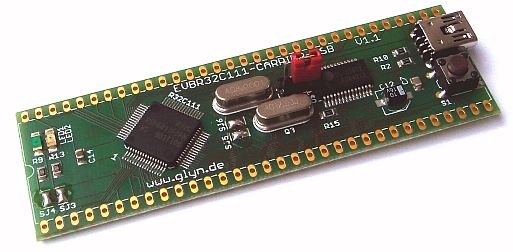

R32C111


X

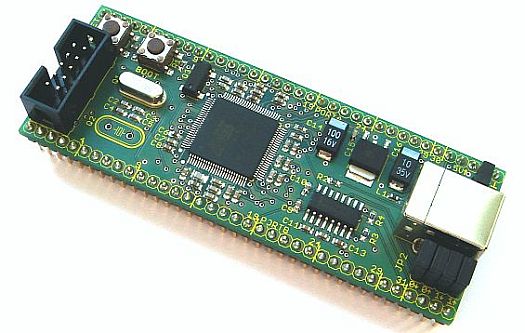

AVR32


X

AT91SAM7SE-EK


X

SAM7SExx_DevMaster


X

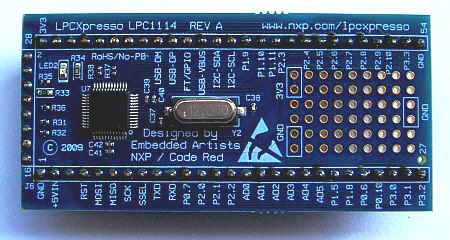

LPC1114


X

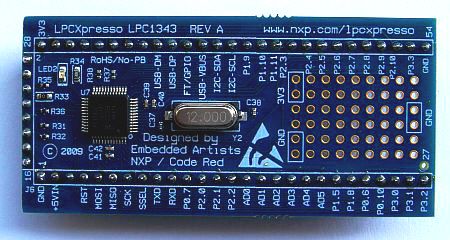

LPC1343


X

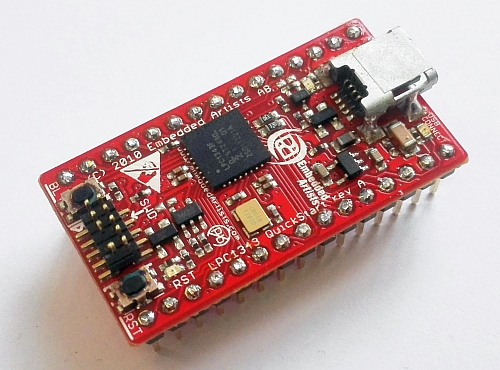

LPC1343 EA


X

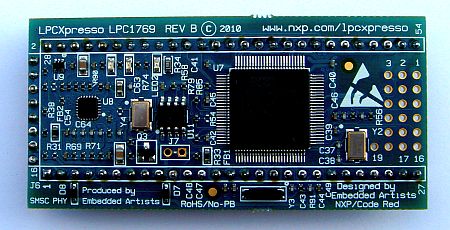

LPC1769


X

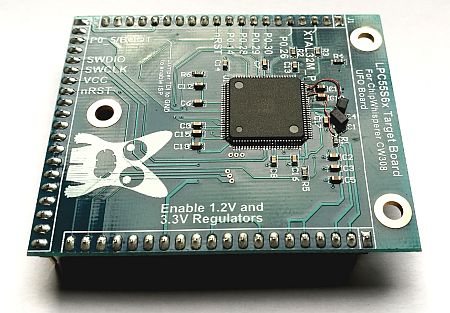

LPC55S69


X

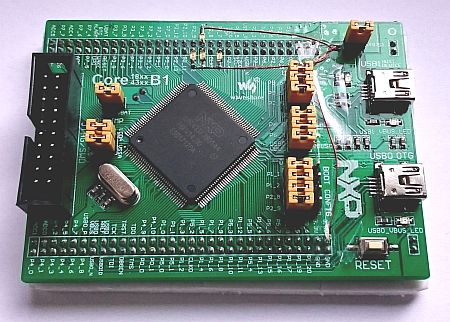

LPC4337 dual-core


X

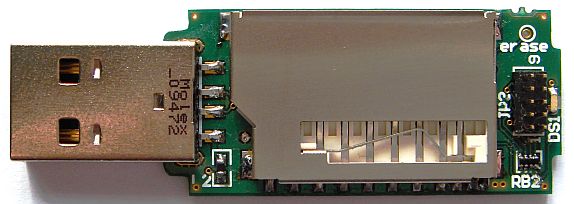

SAM3SxA_Stick


X

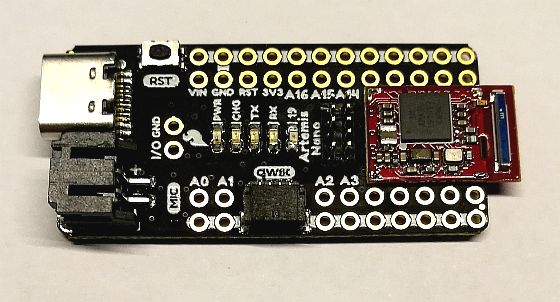

Ambiq Micro Apollo3


X

MMC_SD


X

serial memory


X

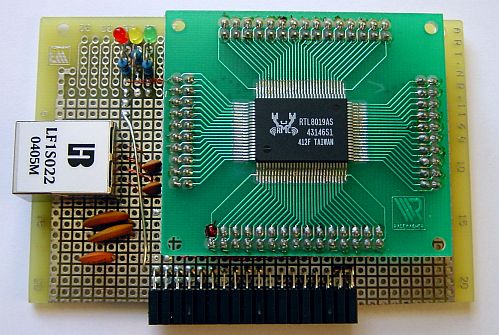

RTL8019AS


X

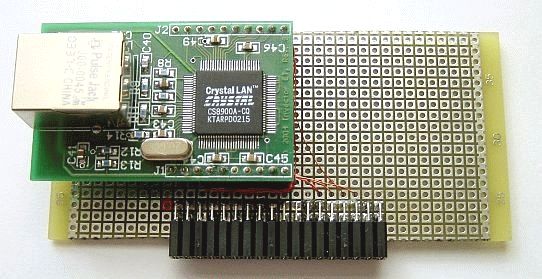

CS8900A


X

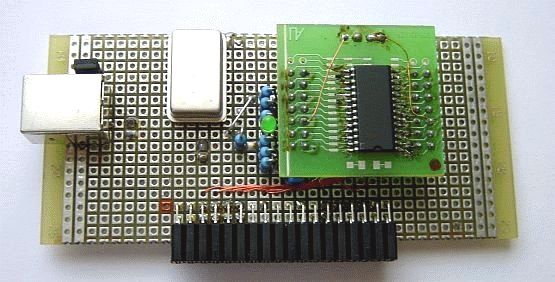

PDIUSBD12


X

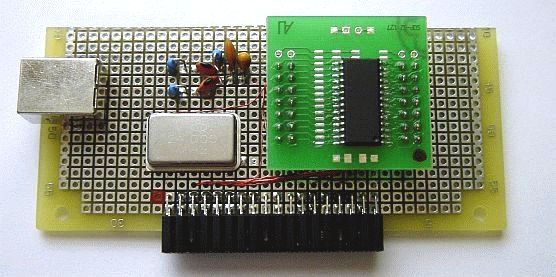

USBN9604


X

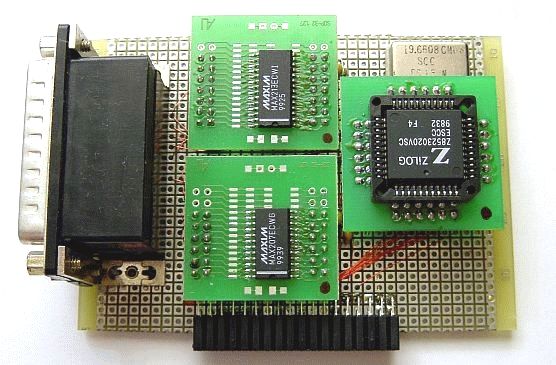

Z85230


X

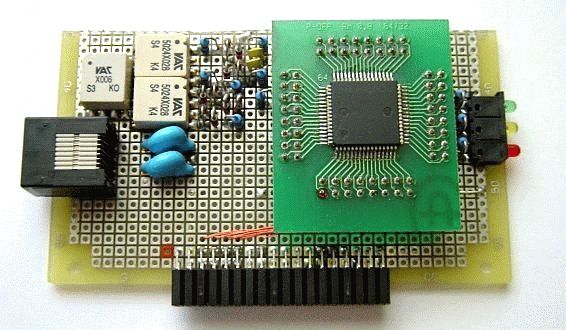

PSB2115


X

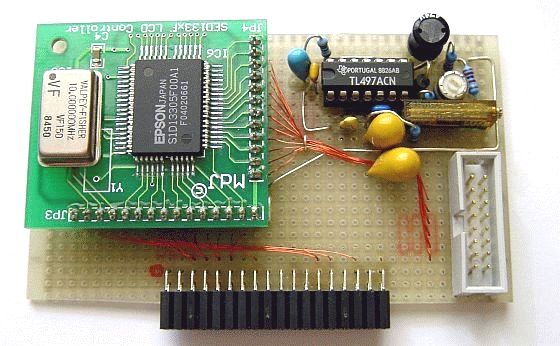

SED133x


X

ATMega128Adapter


X

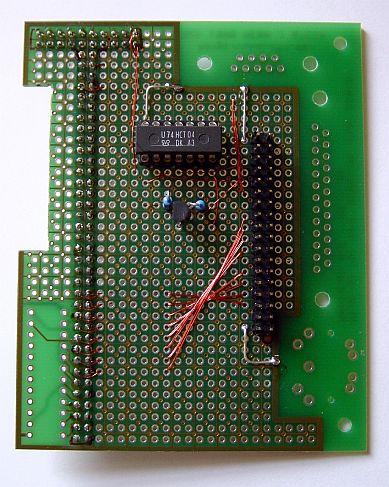

MCB517Adapter


X

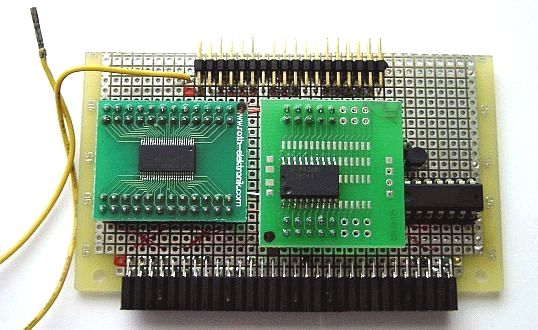

RabbitAdapter
