DCF77 OLED-clock second edition

DCF-clock 2.4     DCF-clock 4.7

After the first setup, based on the Adafruit Feather M0 Basic and a breadboard, was compact but also impractical for a case and especially with very poor reception, I decided to disassemble this setup again and - based on the chosen housings - complete to put together again. This time the SAMD21 boards TAU and Sparkfun were used.
Both variants are briefly documented here.

2.42" OLED

4.7" OLED

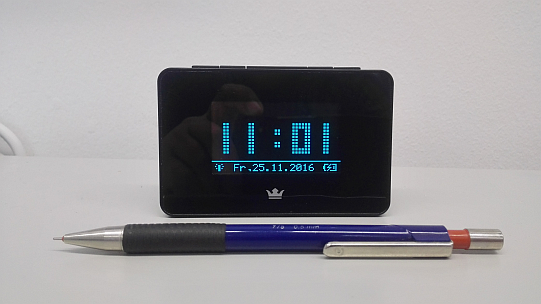

front of 2.42" OLED display

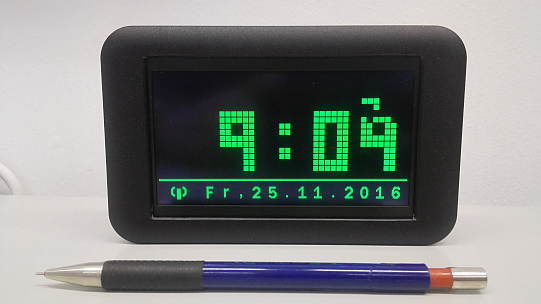

front of 4.7" OLED display

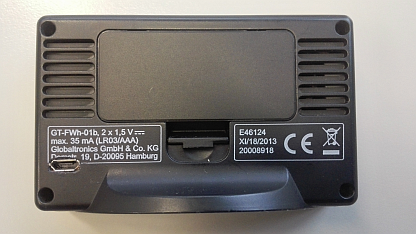

rear of 2.42" OLED

rear of 4.7" OLED

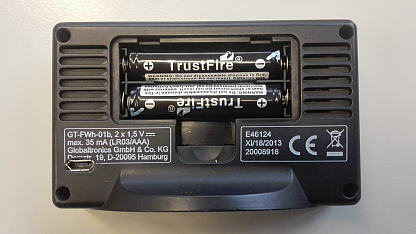

rear of 2.42" OLED open battery

rear of 4.7" OLED open battery

inner of 2.42" OLED

inner of 4.7" OLED

Again, the 2.42 "OLED has shown that it has a very bad DC / DC converter, which obstructs the DCF reception despite the screen foil, but the large 4.7" OLED makes itself perfect as a living room clock :-) !


2.4" - front


2.4" - rear


2.4" - rear open

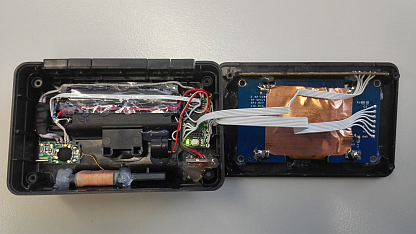

2.4" - inner


4.7" - front

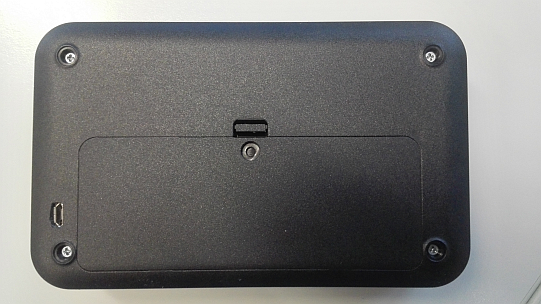

4.7" - rear

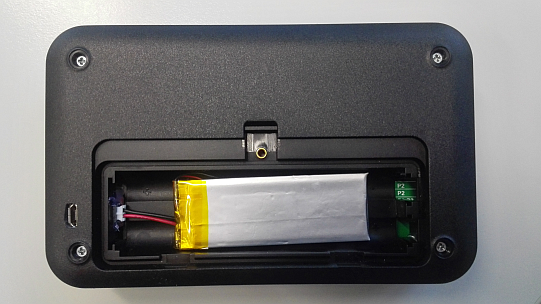

4.7" - rear open

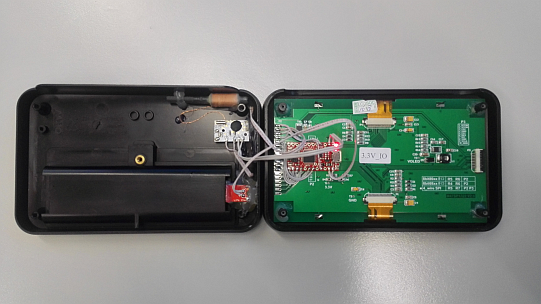

4.7" - inner
